StarTech.com

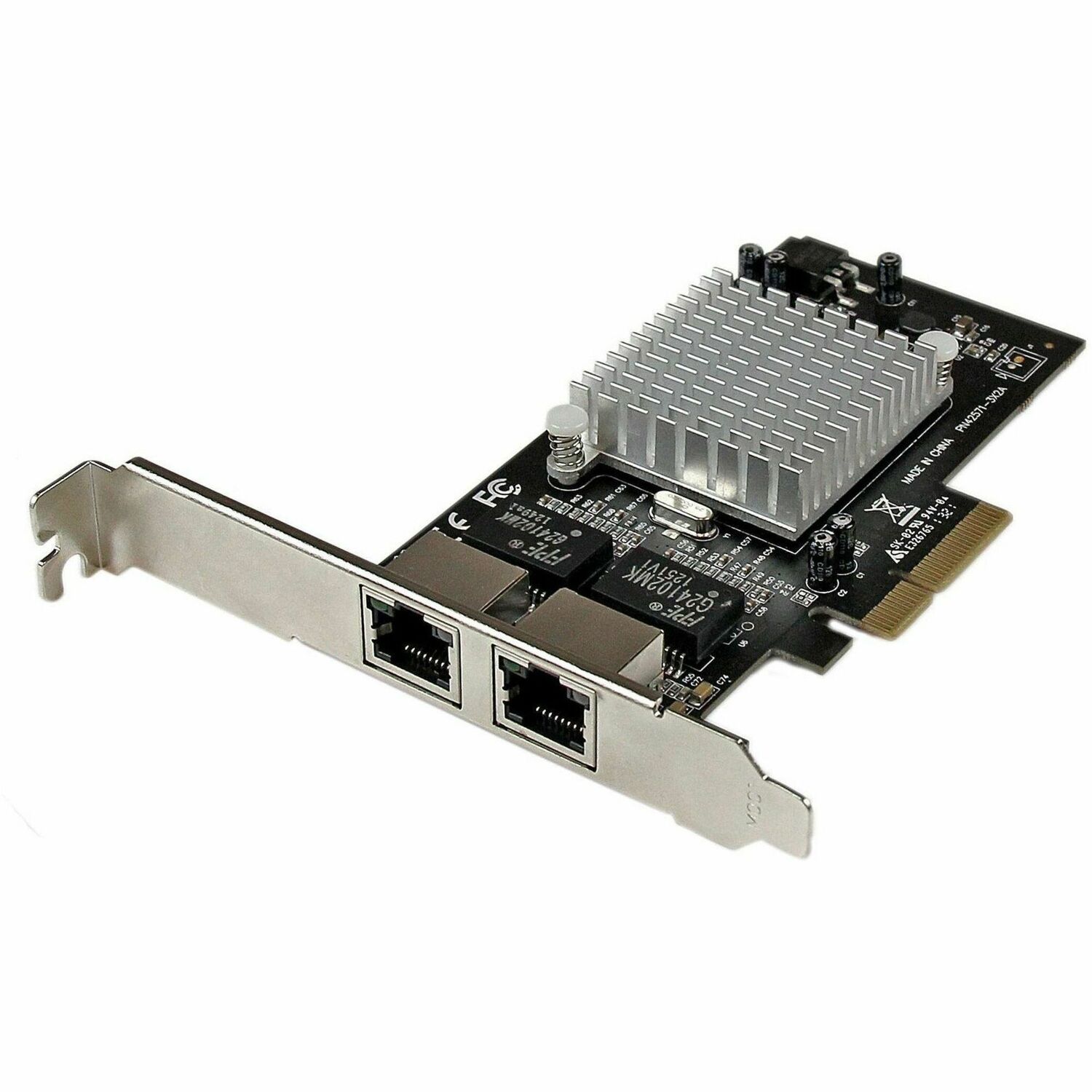

StarTech Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC
Item #: STCST2000SPEXI
Non Returnable
Special Order Item
Shippable Product
Manufacturer:
StarTech.com
Catalog:
General Line (consumer) Catalog
Catalog page:
NEW
Manufacturer
StarTech.com
Manufacturer Part Number
ST2000SPEXI
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
2 Port Network Card
Marketing Information
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation. This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration. Also useful for virtualization applications (check your VM software for chipset compatibility)or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Gigabit Ethernet Card
Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot - Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter - Intel i350 Chipset NIC - 2 Port GbE Network Card - Dual NIC Ethernet Card
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
- Jumbo Frame support up to 9k bytes
- Teaming Support
- Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
- Wake-on-LAN / Remote Wake-up support
- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV)
- Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
- Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
Manufacturer
StarTech.com
Manufacturer Part Number
ST2000SPEXI
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Name
2 Port Network Card
Marketing Information
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation. This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration. Also useful for virtualization applications (check your VM software for chipset compatibility)or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity
1 Each
Product Type
Gigabit Ethernet Card
Chipset Manufacturer
Intel
Chipset Model
I350-AM2
Host Interface
PCI Express x4
Total Number of Ports
2
Network (RJ-45)
Yes
USB
No
Serial Port
No
Ethernet AUI
No
XJACK
No
PoE (RJ-45) Port
No
Number of Network (RJ-45) Ports
2
Media Type Supported
Twisted Pair
Maximum Data Transfer Rate
8 Gbit/s
Network Technology
10/100/1000Base-T
InfiniBand
No
Form Factor
Plug-in Card
Height
4.8"
Width
0.7"
Depth
2.6"
Length
2.6"
Weight (Approximate)
2.80 oz
Package Contents
- 2 Port Network Card
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Device Supported
Computer
System Requirements
- Windows® 7, 8, 8.1, 10
- Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
- Linux 2.4.x to 4.11.x LTS versions only
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin
China
End of Life Manual Availability
Yes
EU RoHS Declaration URL
https://media.startech.com/cms/pdfs/st2000spexi_rohs.pdf
REACH Declaration URL
https://media.startech.com/cms/pdfs/st2000spexi_rohs.pdf
REACH free of SVHC
Yes
WEEE Statement
https://media.startech.com/cms/pdfs/st2000spexi_weee.pdf
2 Year
